Products

Drum Wood Chipper


Drum wood chippers are horizontally fed by input conveyors, are being used for a wide range of applications, they can process different kinds of raw materials like Roundwood, timbers, bamboo, logs, tree branches, rejected boards, veneer residues, and other wood industry wastes. Each model has a different dimension of the input window. The knives of the rotor cut the material to the required chip length.

Application:

  • Panelboards (PB, MDF, OSB)
  • Pellets and briquettes
  • Pulp and paper
  • WPC/WFC

We offer a turn-key wood chipping line to meet different production demands.

Features:

KJDC- series wood chipper is a type of modified drum wood chipper in China, with an internal chip discharge belt conveyor.

Benefit:

There is no need to dig a pit or special concrete foundation for chip discharge. simple installation, convenient maintenance.

Output sizes are adjustable by changing the sieves and changing the feeding speed. Especially for wood pellets production, we supply customized wood chippers to produce as small wood chips as 10-35mm, this size will be easy for the hammer mill to process and greatly increase its capacity.

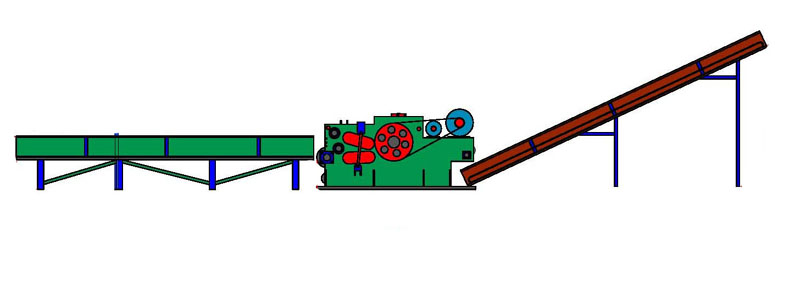

drum wood chipper with input and output conveyor


The chips are of good quality and widely used in particular-board or MDF factories, or power stations. Also used for one-step preparation of wood pellet or wood briquette plant.

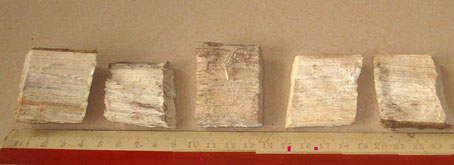

wood chips 25-28mm

Types and technical information:

Type

KJDC3135

KJDC315

KJDC316

KJDC318

KJDC3113

KJDC3116

Qty of knives(pc)

2-3

2-4

2-4

2-5

2-5

4-6

Inlet dimension(mm)

300*180

400*170

540*220

680*270

700*360

1200*400

Max input diameter(mm)

120-130

150

200

250

280

300

Output chip length(mm)

30-40

25-35

25-35

30-40

30-40

30-40

Main Motor(kW)

22-30

37-45

45-55

110

220

350

Input/output conveyor(m)

4 /10

6  /12

6 / 12

6 / 12

8 / 12

8 / 12

Capacity(m³)

1-3

4-8

8-12

15-25

30-50

60-80

Features:

1. Fully assembled before delivery.

2. We fabricate the whole system, includes input and output conveyor, electric control cabinet.

3. Has chips discharging belt inside the drum chipper. No need to make the concrete foundation.

4. Durable knives made of special alloy steel.
